TRM-608 THERMAL RUNAWAY BATTERY MONITOR
Features
The TRM-608 Advanced Thermal Runaway monitor is the first IFC-608 Dedicated monitoring device designed for installation in any new or aftermarket installations of Valve Regulated or Flooded cell systems. The monitor can be installed on any Lead Acid or NiCAD battery system with voltages between -600Vdc to 600Vdc with 1 Controller being able to monitor up to 6 strings. The TRM-608 monitor is powered from a standard 115 Vac outlet and mounted on top of a cabinet, a 19″ or 23″ rack.
- AC Ripple Current, also alarms for differences in AC Ripple Current between strings
- Voltage alarm for Hi/Low and Charge/Discharge
- Float/Discharge current measurements per string and system

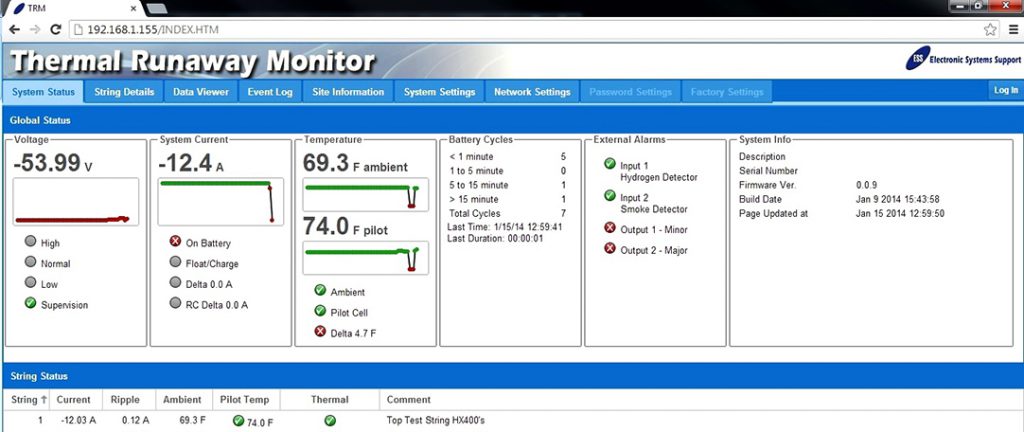

- Graphs for each parameter displayed on Dashboard
- Easy to read values and graphs
- Controller chassis is 19”/23” Rack mounted or mounted on top of cabinets
- 1 controller monitors up to 6 strings
- Web based communication and Control from any PC or Tablet
- E-Mail message sent on alarms and for regular status updates
- 2 External Alarm inputs (for Smoke, Hydrogen, Etc.)
- 2 Alarm Relay outputs (minor, major)
Specifications:
INPUT: 115 Vac / -600 to 600 Vdc
Certifications
