16V FRONT TERMINAL BATTERY CABINETS

EFC5A

Features

Space saving foot print is the industry’s most compact design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 84.0″
WIDTH: 49.6″
DEPTH: 31.5″
WEIGHT: 872 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

800 WPC: 30
925 WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

ELCAA Floor Mounted Landing Cabinet

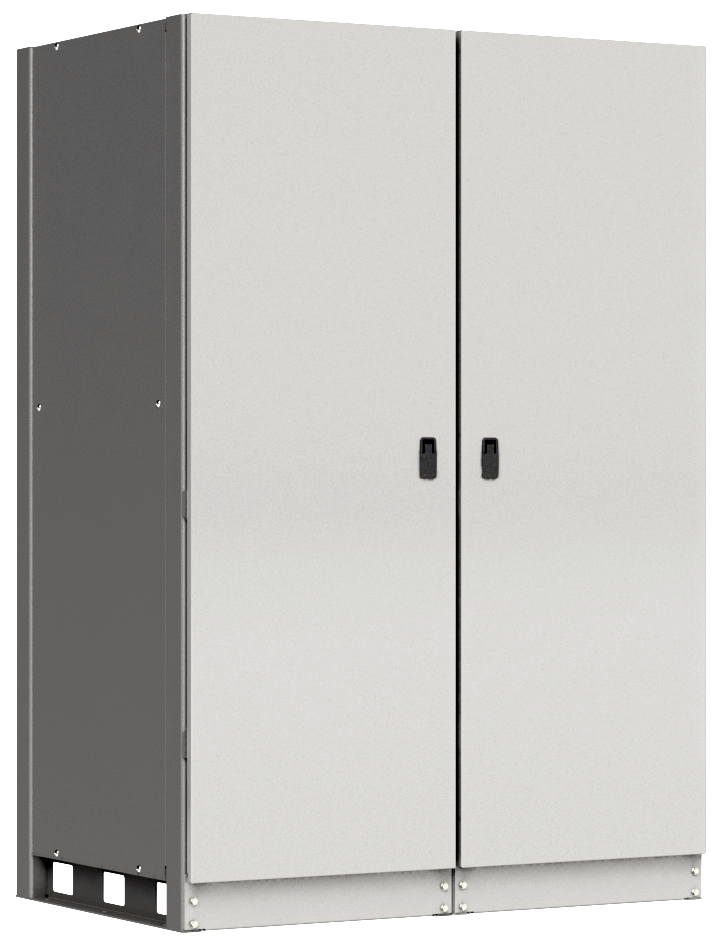

EFC4A

Features

Space saving foot print is the industry’s most compact design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 72.0″
WIDTH: 49.6″
DEPTH: 31.5″
WEIGHT: 765 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

800 WPC: 24
925 WPC: 24

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

ELCAA Floor Mounted Landing Cabinet

EFC5B

Features

Space saving foot print is the industry’s most compact design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 84.0″
WIDTH: 31.4″
DEPTH: 31.5″
WEIGHT: 600 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

550 WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

ELCAA Floor Mounted Landing Cabinet

EFC4B

Features

Space saving foot print is the industry’s most compact design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 72.0″
WIDTH: 31.4″
DEPTH: 31.5″
WEIGHT: 515 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

550 WPC: 24

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

ELCAA Floor Mounted Landing Cabinet

EFS5A

Features

Side mounted breaker with cable entry access plates on top and bottom
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 72.0″
WIDTH: 61.8″
DEPTH: 31.5″
WEIGHT: 910 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

800WPC: 30
925WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

ELCAA Floor Mounted Landing Cabinet

EFS5B

Features

Side mounted breaker with cable entry access plates on top and bottom
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels for simple cable management between strings and additional cost savings in paralleled installations.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 72.0″
WIDTH: 43.6″
DEPTH: 31.5″
WEIGHT: 600 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

550 WPC: 30

Certifications

Downloads
