12V TOP TERMINAL BATTERY CABINETS

ETC41

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Ships fully assembled and wired for easy installation
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic options available

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 40.0″
DEPTH: 29.5″
WEIGHT: 665 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 40
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-40 Landing Box

ETP41

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Battery tray design allows a fully loaded tray to be pulled out and rest in pulled position for easy battery access and maintenance
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic options available

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 40.0″
DEPTH: 29.5″
WEIGHT: 822 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 40
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-40 Landing Box

ETC40

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels allow battery access from all sides and simple cable installation between strings.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, CBC and OSHPD

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 40.0″
DEPTH: 29.5″
WEIGHT: 648 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 40
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-40 Landing Box

ETP40

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Removable side panels allow battery access from all sides and simple cable installation between strings.
Battery tray design allows a fully loaded tray to be pulled out and rest in pulled position for easy battery access and maintenance
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack
NFPA 70 models available
Seismic options available

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 40.0″
DEPTH: 29.5″
WEIGHT: 804 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 40
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-40 Landing Box

ETC36

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 36.0″
DEPTH: 29.5″
WEIGHT: 600 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 40
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-25 Landing Box

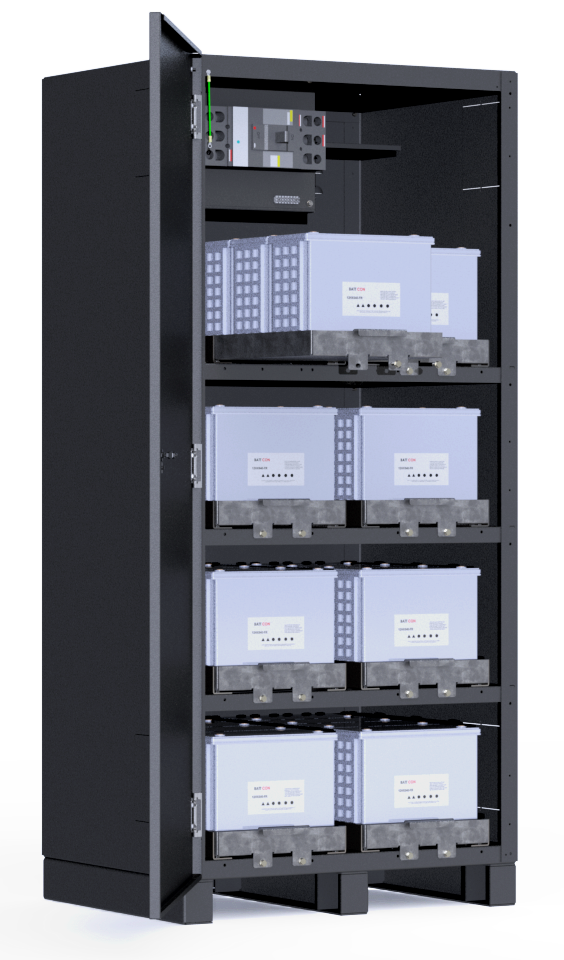

ETP36

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Battery tray design allows a fully loaded tray to be pulled out and rest in pulled position for easy battery access and maintenance
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic options available

Cabinet Specifications:

HEIGHT: 78.7″
WIDTH: 36.0″
DEPTH: 29.5″
WEIGHT: 700 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 32
350 WPC: 32
400 WPC: 32
540 WPC: 32
620 WPC: 32

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-25 Landing Box

ETC32

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Acid resistant powder coat finish using a six stage immersion pretreatment process.
Front and rear access for standard pallet jack.
NFPA 70 models available
Seismic certified to IBC, ASCE-7, and CBC

Cabinet Specifications:

HEIGHT: 70.9″
WIDTH: 36.0″
DEPTH: 29.5″
WEIGHT: 554 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 40
350 WPC: 40
400 WPC: 40
540 WPC: 32
620 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

ETC-SOS Spare on Site Cabinet

ELB-25 Landing Box

ETP32

Features

Nema 1 Cabinet design
UL 1778 listed and fully tested at the factory prior to shipping
Battery tray design allows a fully loaded tray to be pulled out and rest in pulled position for easy battery access and maintenance
Acid resistant powder coat finish using a six stage immersion pretreatment process.
Front and rear access for standard pallet jack.
NFPA 70 models available.
Seismic options available.

Cabinet Specifications:

HEIGHT: 70.9″
WIDTH: 40.0″
DEPTH: 29.5″
WEIGHT: 670 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

200 WPC: 60
300 WPC: 32
350 WPC: 32
400 WPC: 32
540 WPC: 24
620 WPC: 32

Certifications

Downloads
