12V & 16V FRONT TERMINAL VRLA RACKS

EFR54-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 45.5″
DEPTH: 31.5″
WEIGHT: 681 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

750 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC54

EFR44-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 72.0″
WIDTH: 45.5″
DEPTH: 31.5″
WEIGHT: 610 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

750 WPC: 32

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC44

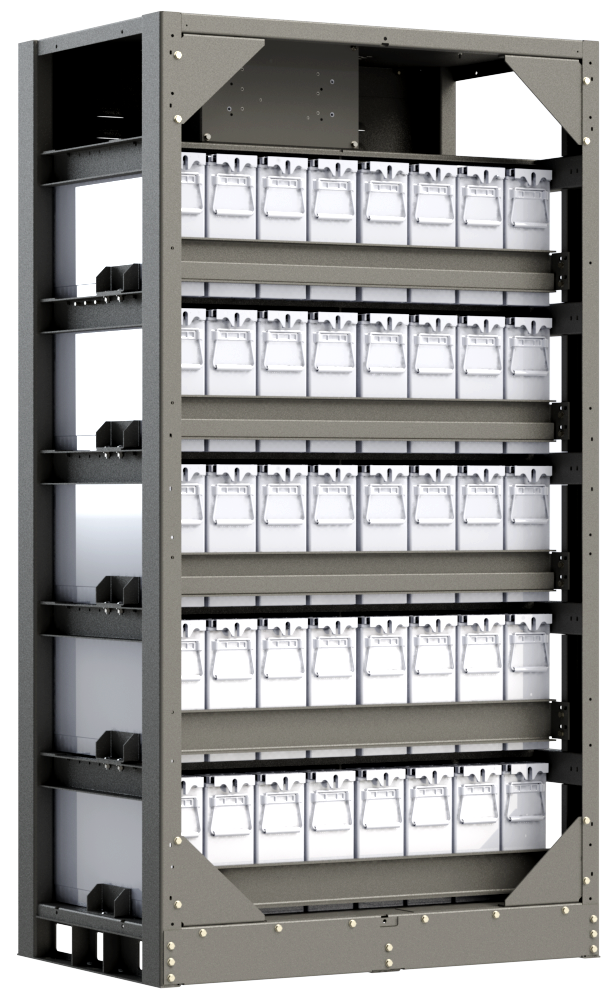

EFR52-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 800A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 45.5″
DEPTH: 29.5″
WEIGHT: 668 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

500 WPC: 40
600 WPC: 40
700 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC52

EFR42-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 72.0″
WIDTH: 45.5″
DEPTH: 29.5″
WEIGHT: 567 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

500 WPC: 32
600 WPC: 32
700 WPC: 32

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC42

EFR51-12V

Features

Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 35.3″
DEPTH: 29.5″
WEIGHT: 465 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

350 WPC: 30
500 WPC: 30
600 WPC: 30
700 WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC51

EFR63-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 67.5″
DEPTH: 28.0″
WEIGHT: 849 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

680 WPC: 40
745 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC63

EFR53-12V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 78.7″
WIDTH: 76.0″
DEPTH: 28.0″
WEIGHT: 876 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

680 WPC: 40
745 WPC: 40

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC12-SOS Spare on Site Cabinet

EFC53

EFR5A-16V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 49.6″
DEPTH: 31.5″
WEIGHT: 724 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

800 WPC: 30
925 WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

EFC5A

EFR4A-16V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 72.0″
WIDTH: 49.6″
DEPTH: 31.5″
WEIGHT: 638 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

800 WPC: 24
925 WPC: 24

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

EFC4A

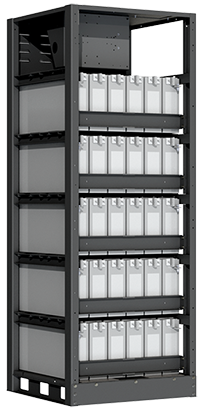

EFR5B-16V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 84.0″
WIDTH: 31.4″
DEPTH: 31.5″
WEIGHT: 483 lbs
MATERIAL: Heavy Gauge Welded Steel Frame

Max Battery Configurations

550 WPC: 30

Certifications

Downloads

You May Also Be Interested In These:

TRM-608 Thermal Runaway Monitor

EFC16-SOS Spare on Site Cabinet

EFC5B

EFR4B-16V

Features

Space saving foot print is the industry’s most compact design
Easy maintenance design allows full front access for safety.
DC Cricuit breakers up to 1000A with enclosures available. Breaker options include: Shunt Trips, UVR, Aux contacts.
Acid resistant powder coat finish using a six stage immersion pretreatment process
Front and rear access for standard pallet jack.
Seismic certified to IBC, ASCE-7, and CBC

Rack Specifications:

HEIGHT: 72.0″
WIDTH: 31.4″
DEPTH: 31.5″
WEIGHT: 409 lbs
MATERIAL: Heavy Gauge Welded Steel Frame
